Diverter

Diverter

The diverter allows you to control the product flow in the pneumatic line and direct it in the desired direction.

Divertor Composition:

  • Case;
  • Flanges with spigots;
  • Distribution box;
  • Levers;
  • Pneumatic tubes and pneumatic cylinders;
  • Pneumatic distributor with coil;
  • Position sensors (reed switches).

Diverter – Flow Distribution Valve

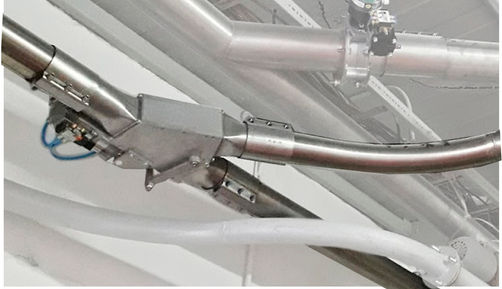

The diverter is used in pneumatic systems where bulk materials are transported under air pressure or vacuum created by compressors in a closed pipeline.


Function and Operation

✔ Flow Direction Control – redirects product flow from the main pneumatic line to a branch.

✔ Automation – controlled by a pneumatic-electric actuator from the central system control unit.

✔ Manual Option – can also be operated manually if needed.


Construction

✔ Material Options – available in aluminum or stainless steel for handling highly abrasive materials like sugar.

✔Secure Connection – mounted in the system using a sleeve-coupling connection.


A reliable and efficient solution for precise product flow distribution in pneumatic conveying systems.
